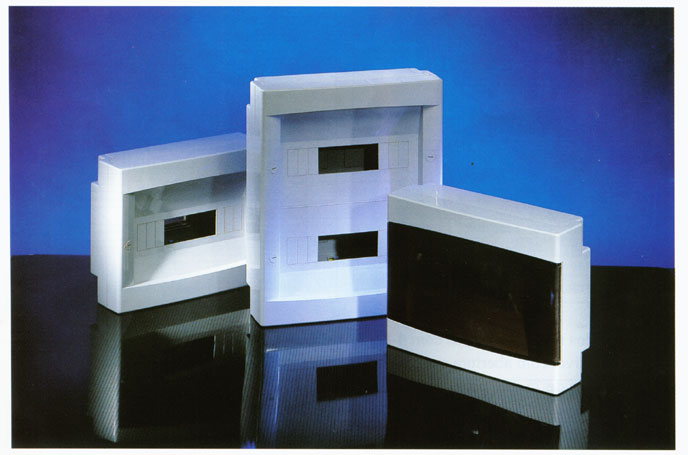

The IP40 DOMINO SERIES DISTRIBUTION CENTERS AND BOXES line features the modularity and interchange of its components facilitating the panel installation and mounting.

It features a modern design providing the civil construction professionals with a superior level in its class of products.

They are manufactured within the highest quality standards providing more safety at the installation.

TECHNICAL FEATURES

- Models: Flush mounting and surface rear mounting
- Protection class: IP40.
- From 4 to 54 DIN modules.
- Manufactured in self-extinguishable thermoplastic material, halogen-free, resistant to chemical and atmospheric agents.
- Standard: IEC 6 70.
- Modern design.
- Allows for horizontal and vertical enlargement.
- Dimensional stability:-25?C to +65?C
- Self-extinguishable: Glow-wire test - 650?C according to IEC 695-2-1.
- Double insulation according to EN 60439-1 with lids at the panel bottom.

FINISHING

In 2 colors:

- Gray Line (RAL 7035) with fume transparent door.
- White line (RAL 7003) with white opaque door.

Características construtivas - Série Dómino IP40 - Embutir
CONSTRUCTIVE FEATURES – IP40 DOMINO SERIES - FLUSH MOUNTING

Example in blown up view Possibility of horizontal and vertical blowing up

- Seven models respectively with 4-8-12-24-36-54 DIN modules.
- Reversible door with upper opening to 180? to both sides.
- 75mm depth for centers and boxes of 01 circuit breaker row.
- 95 mm depth for boxes of 02 or more circuit breaker rows.
- Chassis with disassembly DIN rail allowing for the bench mounting. The screws which attach the chassis at the bottom are in inox and non-losable. Blister level included.
- Cover closing system with ¼” turn device with plastic screws (except 2/4-module center.
- 150 mm space between the DIN rails.
- Neutral and earthing rules can be attached to the chassis.
- Triangle zipper in the fume line.
- Possibility of mounting circuit breakers with 53 and 68 mm high.
- It is possible to install molded box circuit breakers up 125A in the 24-36-54 DIN versions.
- Possibility of sealing cover and chassis.

Items of the series

- Label for circuits identifying
- Plastic slat 4 modules DIN
- Triangle key in the fume line.

Accessories

- Lateral/vertical joint
- Neutral and earthing rulers- IP00, attach on the chassis- IP00, attach on the rail.
- Slats which attach to the DIN rail - A module or half a module- provide a high finishing on the box frontal side.
- Elevating DIN rail support - levels the height of mini-circuit breakers with the circuit breakers of molded box, taking the advantage of the rail capacity - 18 mm high.
- Zipper with Yale key.
