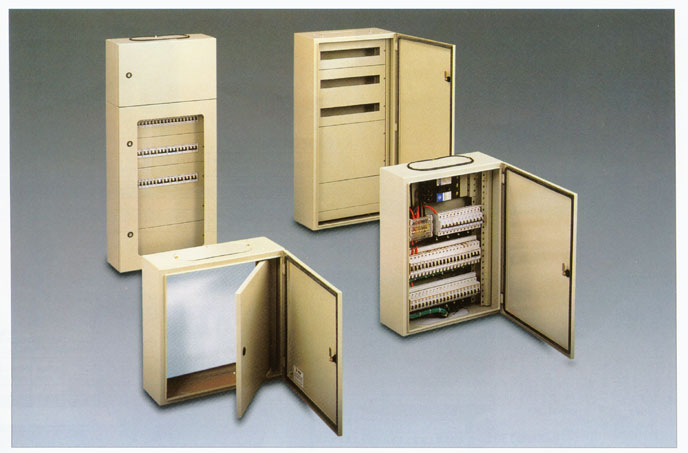

CEMAR features its Cemar System line, in several models and sizes suitable for light and energy distribution in BT, providing several mounting configurations. They are designed for horizontal mounting of European standard circuit breakers, on 35mm DIN rails.
They are also recommended as control panels for electrical and electronic mounting, such as control, distribution and protection of machines.
They can be installed at factories, industries, commercial buildings, warehouses, shopping centers and schools.

TECHNICAL FEATURES

- CEMAR System panels are built in SAE 1008 steel sheet, welded in single block structure.
- They can be found in five different sizes, with option for Metal Door or Transparent Door.
- They feature 150 m progressive modularity and sealing against powder entry.
- Upper and lower flange in all panels and coupling among them.
- The available accessories are: Mounting Plate, DIN Rail, Vertical Support, Internal Door, Blind Cover, Perforated Cover, Regulating Rail, Tray for General, etc.
- Earthing on the Mounting Plate and on the Door with Standard Slot.
Protection Level: IP55

FINISHING

Cemar System Panels feature an anticorrosive treatment on a chemical bath system (degrease and phosphatizing coating iron phosphate base).
a) Mounting Plate: hot zinc-coated plated (galvanized)
b) Boxes, covers, doors and vertical support in beige (RAL 7032), powder epoxy electrostatic painting.
a) c) DIN rail: hot zinc-coated plate (galvanized).
