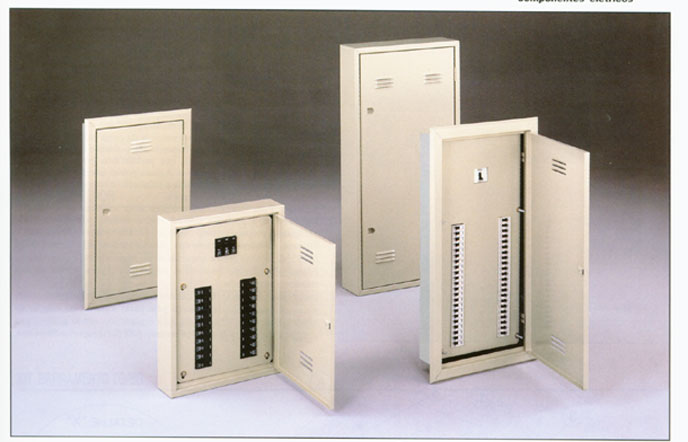

The DIN/UL UNIVERSAL distribution boxes are suitable for the use as light and energy box, in buildings, schools, hospitals, commercial, industrial and residential facilities, and they can be fit with European standard separating keys, circuit breakers for mounting on 35mm or American standard quick coupling rails.

The DIN/UL UNIVERSAL boxes are an intelligent option. In addition to being modern they provide the user, the installer and the reseller with a more practical, safer, flexible and economical option for the electrical installation.

TECHNICAL FEATURES

The DIN/UL UNIVERSAL boxes, designed in the flush mounting and surface rear mounting versions are manufactured within the most severe quality standards, having as main features: versatility and practical in the electrical installations.

The DIN/UL UNIVERSAL boxes innovate and change the current concept of installation and trade of boxes for circuit breakers with the following technical features:

- Allows for the user to acquire the mounting Kits for the circuit breakers separately, that is, it is a box which allows for the circuit breakers installation with different constructive features, European standard (DIN standard) or American (UL standard). Hence, its main versatility feature.

- They are manufactured in the flush mounting and surface rear mounting models with capacity for 150A and 255A.

- The DIN/UL UNIVERSAL boxes are composed of mounting plate at its bottom allowing for the installation of the DIN Kit on one side (European standard) and the other UL Kit (American standard).

- The DIN or UL mounting Kits, in addition to the installation facilities, provide a number of advantages which can be:

- Money saving since they can be acquired at the end of the work schedule.

- Eliminates the risk of misleading of parts and pieces.

- Allows for the user flexibility to decide on the use of the circuit breaker type to be acquired (DIN or UL standard), at the time of the circuit breakers installation.

FINISHING

DIN/UL UNIVERSAL boxes feature an anticorrosive treatment on a chemical bath system (degrease and phosphatizing coating iron phosphate base).

Flush mounting: a) Cover and mirror: Beige (RAL 7032) power epoxy electrostatic painting.
b) Box and Mounting Plate: hot zinc-coated plated (galvanized)

Surface rear mounting: a) Cover and Mirror: Beige (RAL 7032). Powder epoxy electrostatic painting.
Mounting Plate: hot zinc-coated plate (galvanized)
