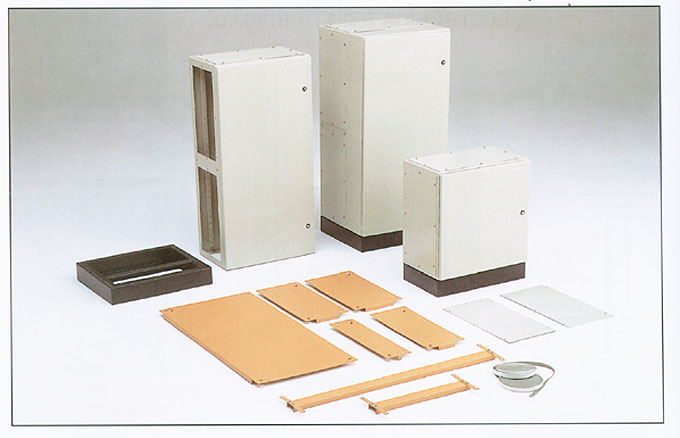

UCB- type Cabinets offer to their user a wide range of electrical installation options. They can be installed individually or in sets of several different sizes according to the users’ installation needs.

These cabinets are specially suited for the control of power distribution, protecting electrical equipment of command, control, protection, interruption, measurement and signaling. They are also indicated for assembling of machine controls, engine starter units, compensating switches and other types of electrical controls.

They can be used in commercial and residential installations as well as in building facilities.

Technical Features

Easily disassembled, they are easy to transport and occupy less warehouse space (cabinets come disassembled and are supplied with screws).
- Cabinets come in four basic and symmetric sizes, allowing any assembling combination as well as further modifications, even after the installation.
- Provided with a wide range of accessories, they make any type of assembling or installation easy to do and allow the users to buy only the parts they will need, thus reducing the installation costs.
- All accessories , such as flange cover, mounting plate, plinth and plate section are supplied with their respective assembling screws.
- All cabinets have grounding screws on their doors.

Finishing

UCB-type Modular Cabinets receive treatment by chemical bath system (degreasing, iron phospate based deoxidation and phosphatizing).
Body of cabinet, door and flange cover: receive powder based electrostatic epoxy painting in beige color (RAL 7032).
Mounting plate and plate section: receive powder based electrostatic epoxy painting in orange color (RAL 2004).
Plinth: receive powder based electrostatic epoxy painting in black color.
