Solid-state relay
TN 4026 model

RELÉ DE ESTADO SÓLIDO desenvolvido
com, tecnologia nacional, podendo acionar cargas
de até 40A. Contem isolamento por acoplador
ótico, e tendo como principal vantagem ser
acionado diretamente através da própria
lógica criada pelo usuário. Substitui
com segurança e durabilidade o relé
de contatos mecânicos

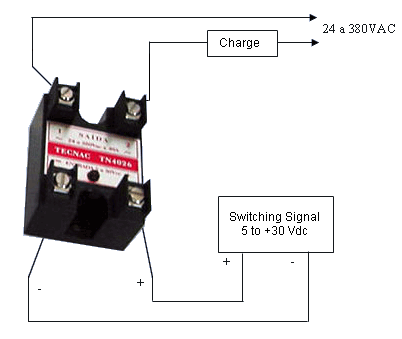

SOLID STATE RELAY developed using Brazilian technology,
able to perform charges of up to 40A. Isolation
by optic coupler, holding the main advantage of
being triggered directly through the logic created
by the user. A safe and long-lasting replacement
for mechanical contacts relays.
Principais características:
Main features:
- Fully electronic
- Can trigger inductive or resistive loads
- Switching voltage from 24 to 380 Vac
- Switching capacity for charges up to 40A.
- triggered signaling relay
- Discharge voltage from 5 to 30 Vdc
- Dimensions 50 x 44 x 35 mm
